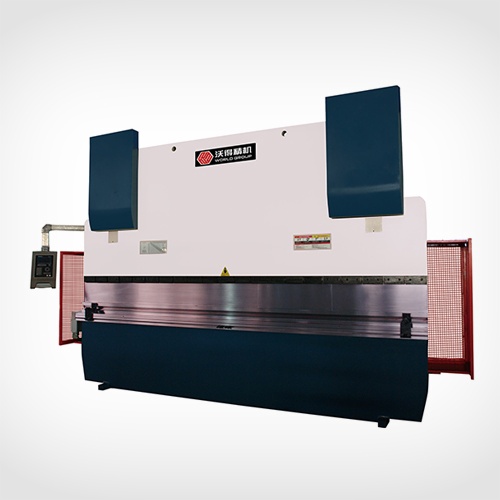

WE67K Series CNC Hydraulic Press Brake

Features: Hydraulic down-stroke construction. Dual-hydrocylinder drive. Electro-hydraulic servo-valve, test by grating scale. The slide stroke(axes Y1, Y2) and back gauge(axes X) are all automatical. With automatic deflection compensation device. Controlled by CNC system which adopt Delem system…

Inquiry Now

Description

Features:

  • Hydraulic down-stroke construction, Dual-hydrocylinder drive.
  • Electro-hydraulic servo-valve, test by grating scale.
  • The slide stroke(axes Y1, Y2) and back gauge(axes X) are all automatical.
  • With automatic deflection compensation device.
  • Controlled by CNC system which adopt Delem system or Cybelec system.
  • Mainly adopt Delem DA-52 control system, DA-56 or DA-65W system are also available.

Main Technical Specifications:

Model Press force Bending length Width between columns Throat depth Ram stroke Open height Drive motor Length Width Height Weight (approx.)
kN mm mm mm mm mm kW mm mm mm kg
WE67K-63/2500 630 2500 2050 300 160 400 5.5 2750 1600 2450 6000
WE67K-63/3200 3200 2700 3300 1600 2650 6600
WE67K-100/2500 1000 2500 2050 350 200 400 7.5 2750 1750 2600 8300
WE67K-100/3200 3200 2700 3300 1750 2700 9500
WE67K-100/4000 4000 3200 4150 1750 2750 11000
WE67K-125/2500 1250 2500 2050 350 200 400 7.5 2750 1750 2650 8800
WE67K-125/3200 3200 2700 3300 1750 2750 10500
WE67K-125/4000 4000 3200 4150 1750 2800 12000
WE67K-160/2500 1600 2500 2050 350 200 450 11 2750 1800 2650 9600
WE67K-160/3200 3200 2700 3300 1800 2750 11800
WE67K-160/4000 4000 3200 4150 1800 2800 13200
WE67K-160/5000 5000 4500 5150 1800 2970 17400
WE67K-200/2500 2000 2500 2050 400 250 520 18.5 2750 2000 2800 10000
WE67K-200/3200 3200 2700 3300 2000 2910 14500
WE67K-200/4000 4000 3200 4150 2000 2950 16000
WE67K-200/5000 5000 4500 5150 2000 3200 20000
WE67K-200/6000 6000 5100 6150 2000 3350 24800
WE67K-250/2500 2500 2500 2050 400 250 520 18.5 2750 2000 2850 12800
WE67K-250/3200 3200 2700 3300 2000 2930 15000
WE67K-250/4000 4000 3200 4150 2000 2980 17800
WE67K-250/5000 5000 4500 5150 2000 3200 24800
WE67K-250/6000 6000 5100 6150 2000 3350 29800
WE67K-320/3200 3200 3200 2700 400 250 550 22 3350 2100 3150 19600
WE67K-320/4000 4000 3200 4150 2100 3200 22200
WE67K-320/5000 5000 4500 5150 2100 3420 29000
WE67K-320/6000 6000 5100 6150 2100 3800 33200
WE67K-400/3200 4000 3200 2700 400 300 570 30 3470 3200 4250 24000
WE67K-400/4000 4000 3200 4270 3200 4370 26000
WE67K-400/5000 5000 4000 5270 3200 4710 32000
WE67K-400/6000 6000 5000 6270 3200 5020 38000
WE67K-400/7000 7000 5600 7270 3200 5355 45000
WE67K-500/3200 5000 3200 2700 450 300 600 37 3470 3400 4670 42000
WE67K-500/4000 4000 3300 4270 3400 4670 46000
WE67K-500/5000 5000 4000 5270 3400 4750 49000
WE67K-500/6000 6000 5000 6370 3400 5080 53000
WE67K-500/7000 7000 5600 7370 3400 5450 58000
WE67K-500/8000 8000 6000 8370 3400 5600 68000
WE67K-600/4000 6000 4000 3300 500 350 650 45 4270 3800 5160 51000
WE67K-600/5000 5000 4000 5270 3800 5340 56000
WE67K-600/6000 6000 5000 6370 3800 5560 63000
WE67K-600/7000 7000 5600 7380 3800 6100 70000
WE67K-700/4000 7000 4000 3300 600 350 700 45 4270 3000 5400 56000
WE67K-700/5000 5000 4000 5270 3000 5650 62000
WE67K-700/6000 6000 5000 6370 3000 5900 69000
WE67K-700/7000 7000 5600 7370 3000 6300 76000
WE67K-800/4000 8000 4000 3300 600 400 800 55 4250 3400 5960 65000
WE67K-800/5000 5000 4000 5250 3400 6210 74000
WE67K-800/6000 6000 5000 6370 3400 6500 86000
WE67K-800/7000 7000 5600 7370 3400 6750 98000
WE67K-800/8000 8000 6000 8370 3400 7000 108000
